usages:

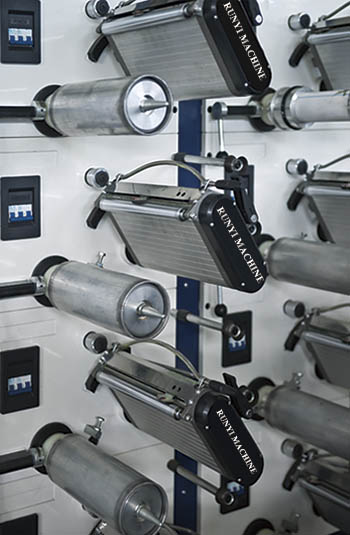

ry series separate string wind machine is mainly used as wind machine in plastic weave spin group．after adjusted，it may be used·in light industry，textile industry and electronic industry．
technical parameters:
|
technical parameters |
magnetic winder |
winder with individual inverter |
|
wind top line speed |
280m/min |
450m/min |
|
wind cylinder max.diameter |
160~280mm |
160~280mm |
| weft of wind string | 60~230tex | 60~200tex |
|
width of wind string |
1.6~5mm |
1.6~5mm |
|
work electric voltage |
ac380v |
ac380v |
|
frequency |
50hz or 60hz |
50hz or 60hz |
|
single spindle power of electric generator |
120w or 180w or 250w |
120w or 180w |
|
rotation velocity of electric generator |
2800r/min |
2800r/min |
|
wind cylinder dimension |
φ35-φ90(id）×220~270mm（l） |
φ35-φ90(id）×220~270mm（l） |
|
reciprocate distance |
203~250mm |
203~250mm |
|
single spindle board dimension |
477×330mm |
360×230mm |
|
single spindle weight |
21kg |
16kg |
specification and dimensions are subject to change without prior notice.
