sjpl-s plastic extrusion flat film double-die srretching line
sjpl-s plastic extrusion flat film double-die srretching line

moved picture on your mouse, magnifying the effect of visible product

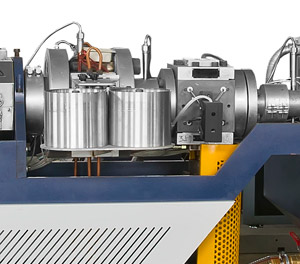

  sjpl-s plastic extrusion flat film double-die stretching line is specially designed for pp and hdpe with high quality and excellent performance.
  perfect tape quality lowest consumption best economic benefit
  available: woven sack chemical bag foods bag cement bag leno bag jumbo bag geo textile tarpaulin



technical parameters:

item

sjpl-90×33-700/1100

sjpl-100×33-900/1300

sjpl-110×33-1100/1350

sjpl-120×33-1200/1500

max.extrusion volume

170kg/h

250 kg/h

330kg/h

400 kg/h

screw dia

90mm

100mm

110mm

120mm

ratio of l/d

33:1

33:1

33:1

33:1

rotate speed of screw

20-120r/min

length of mold lip

700/1100mm

900/1330mm

1000/1350mm

1200/1500mm

line speed

230m/min

flat yarn fibre scope

60-230tex

drawing ratio

4-10

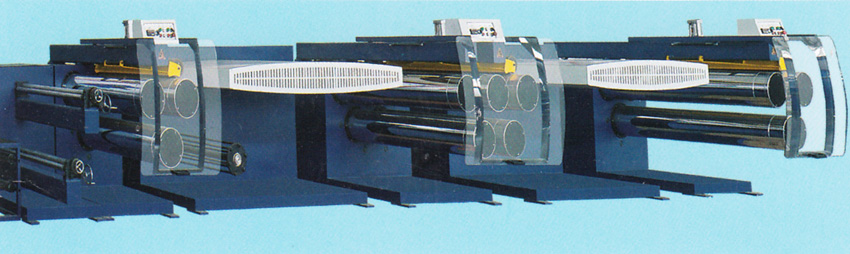

winder

136 spindles

184 spindles

212 spindles

240 spindles

specification and dimensions are subject to change without prior notice.
